Gave Size00 NH00 Fuse Link
NH00 Fuse Link Selection Table:
| Ordering code | Rating | Size |
| 66920010 | 10A | NH size 00 |
| 66920016 | 16A | NH size 00 |
| 66920020 | 20A | NH size 00 |
| 66920025 | 25A | NH size 00 |
| 66920032 | 32A | NH size 00 |
| 66920040 | 40A | NH size 00 |
| 66920050 | 50A | NH size 00 |
| 66920063 | 63A | NH size 00 |
| 66920080 | 80A | NH size 00 |
| 66920100 | 100A | NH size 00 |
| 66920125 | 125A | NH size 00 |
| 66920160 | 160A | NH size 00 |
Product：Fuse Links

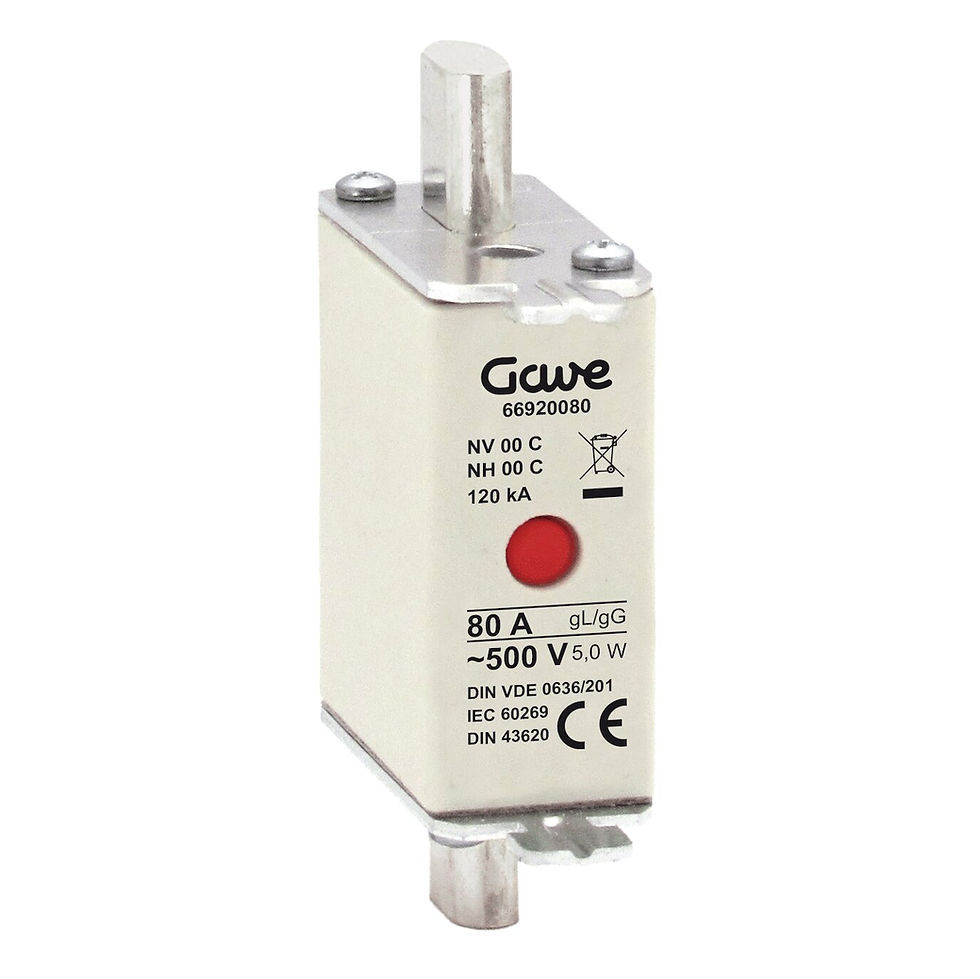

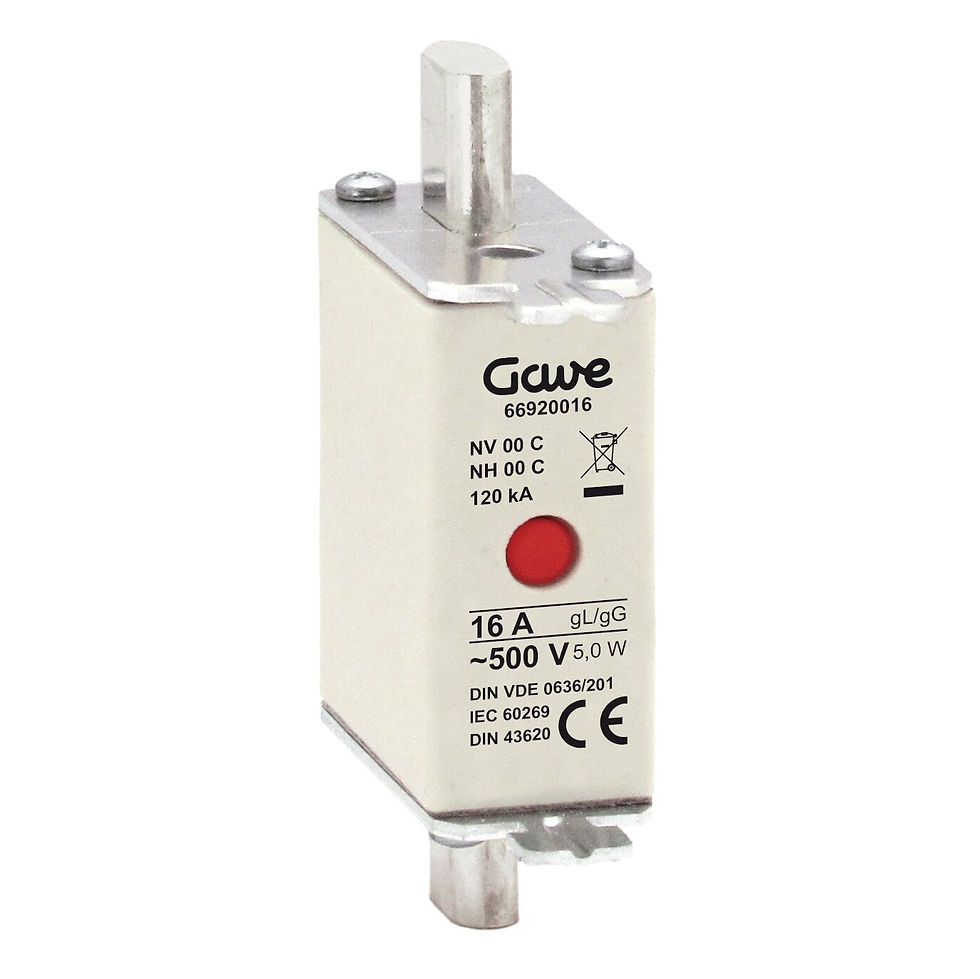

GAVE NH 00 Fuse Link
Gave NH00 DIN Type Fuse Link
General Characteristics
NH blade fuse of compact dimensions size with protective curve GG class.
Suitable for the protection of lines or equipment for tensions up to 500V offers a high selectivity in the protection against overload and a 120KA rupture capacity in short-circuit protection.
Ceramic highly resistant to thermal shocks and pressure.
Copper contacts with silver bath and specially for easy introduction into the fuse base.
Central melting indicator For quick visualization of the fuse status, spikelet explorer of the stainless steel indicator reverses more reliability when avoiding corrosion and aging problems.
Security fuses with silver-plated or nickel-plated contacts
- Silver-copper fuse element
- Steatite b o d y with high resistivity to internal pressure
- Breaking capacity:
- 120 kA- 500 V~
- 80KA - 690V~
According to
- UNE 21103
- VDE 0636
- IEC 60269-2
- NFC63210
