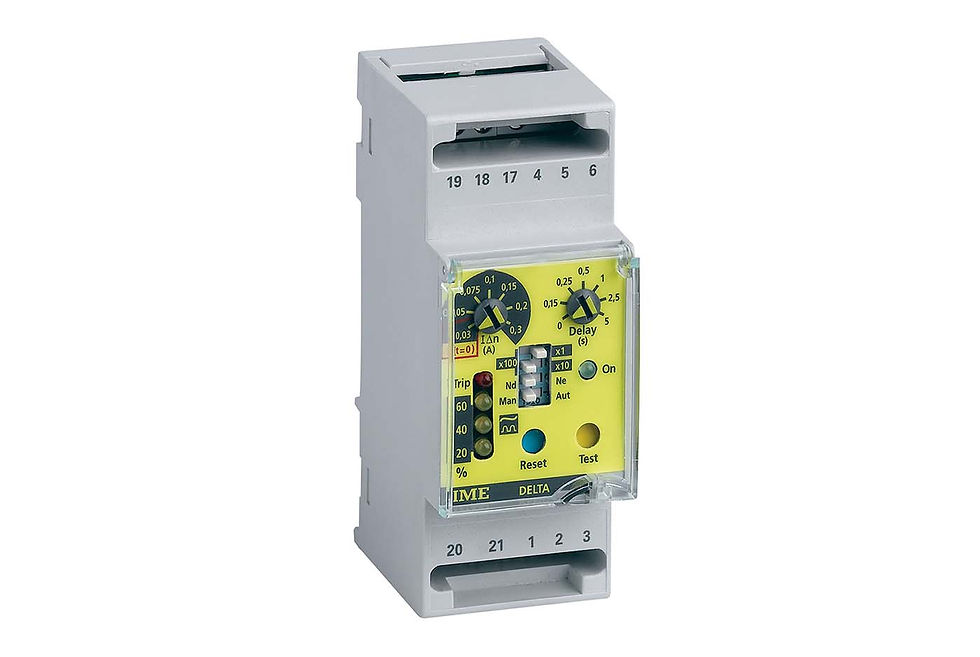

IME Earth Leakage relay Delta range.
IME Delta Differential relays with separate toroids for flus-mounting or Din35 rail installation. For catalogue:

Product: Delta D2-L
Product: Delta 48-S
Product: Delta 72-S
Product: Delta 96-S

The DELTA range of modular and built-in residual current relays, in combination with the Del and Del A toroidal transformers (openable), aims to protect people and goods, while ensuring the continuity of service of the systems.

Delta Earth Leakage Relay Selection Table
ModelOrder codeMounting    Size Aux supply
Delta 96-s  RD1G213B     Flush 96x96   230VAC
Delta 96-sRD1G211B   Flush96x96  24VDC
Delta 96-sRD1G21HB   Flush96x9620-150VDC
Delta 72-sRD1E213B   Flush72x72  230VAC
Delta 48-sRD1D213B   Flush48x48  230VAC
Delta D2-LRD1AF13B   DIN2 Mod  230VAC




IME Earth Leakage relay Delta range.

HK$2,689.00價格

  • IME Delta Earth Leakage Relay

    IME DELTA range Earth Leakage Relay

    The main features are:

    PERMANENT CONNECTION CHECK

    • An important feature of the DELTA series is the permanent control of the connection circuit between the differential relay and the toroid. When any anomaly is detected in the connection between the toroid and the relay, the protection intervenes automatically, without having to wait for the periodic check to be carried out with the test button.

    ΔT ADJUSTMENT OF THE TRIP TIME

    • The adjustment of the tripping time Δt makes this series the ideal solution for creating selective protection systems; the IΔn current regulation allows people and goods to be protected against unwanted or dangerous dispersions.

    VERSION WITH HARMONIC COMPONENTS FILTER

    • With the evolution of system requirements and the introduction of devices equipped with power electronics in systems, the F models were created, with harmonic component filter for heavily disturbed systems.
