FUJI SC series 3P AC Magnetic contactors

Rating: From 9A - 800A AC3 400V 50Hz

Selection Table on SC series 230V 3P contactors

		AC3
Order code	440V	440V	NO (A)	NC (B)
SC-03	4kW	9A	1	-

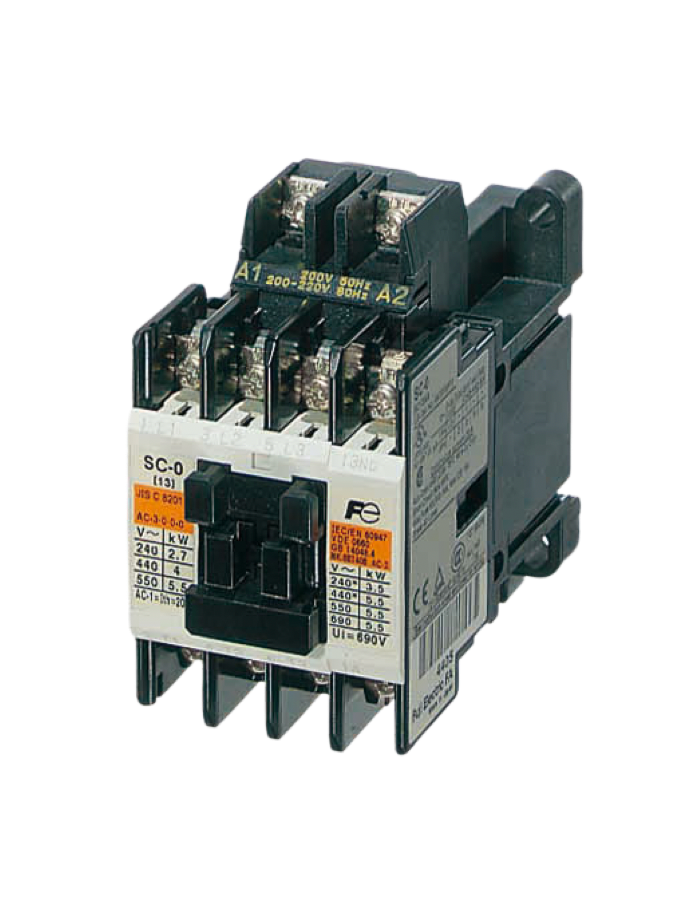

SC-0	5.5kW	12A	1	-
SC-05	5.5kW	12A	1	1

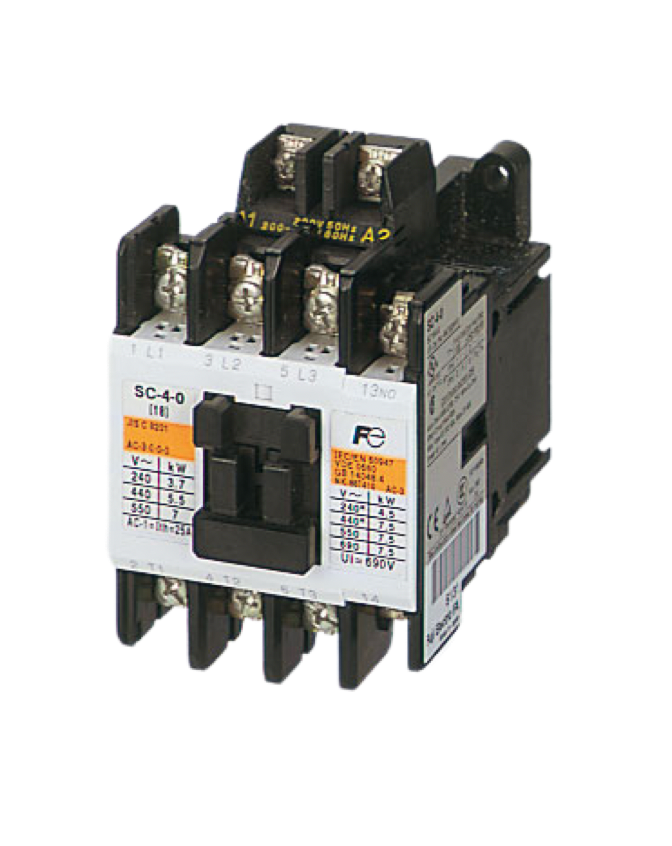

SC-4-0	7.5kW	16A	1	-

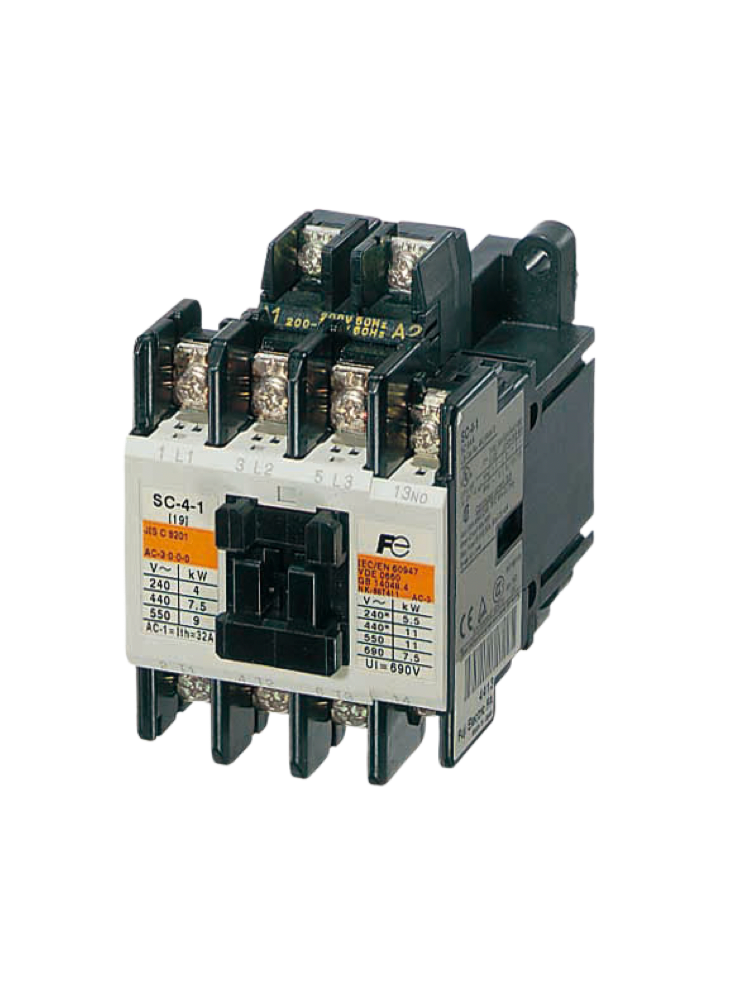

SC-4-1	11kW	22A	1	-
SC-5-1	11kW	22A	1	1
SC-N1	15kW	32A	2	2
SC-N2	18.5kW	40A	2	2
SC-N2S	22kW	50A	2	2
SC-N3	30kW	65A	2	2
SC-N4	40kW	80A	2	2
SC-N5A	55kW	105A	2	2
SC-N6	60kW	125A	2	2
SC-N7	75kW	150A	2	2
SC-N8	90kW	180A	2	2
SC-N10	110kW	220A	2	2
SC-N11	160kW	300A	2	2
SC-N12	220kW	400A	2	2
SC-N14	315kW	600A	2	2
SC-N16	440kW	800A	2	2

Product: SC Series Contactor

FUJI SC series 3P AC contactor

HK$125.00

Quantity

FUJI SC Series Magnetic Contactor
The SC series is a range of long service-life and high-performance contactors.
Description
FUJI SC series (SC-N6 to N16) contactors have been developed and manufactured using FUJI’s most advanced electronic technologies. They employ an electronically-controlled SUPER MAGNET which is provided witha built-in IC, thus enhancing their performance and reliability.
The SUPER MAGNET is based on an “AC-input, DC-operated concept“, thus allowing the coil to be energized by both AC and DC input. Moreover, once closed, sealed current is controlled by switching circuit.
This permits a great reduction in power consumption – a cost-effective feature.The SC-N1 to SC-N5A do not have the SUPER MAGNET.
These contactors feature compact size, arc extinguishing mechanisms with a high breaking efficiency, low power consumption, easy operation, and ratings up to 660 volts.
SC-03 to SC-N3 small frame contactors provide snap-on fitting of numerous optional units, such as auxiliary contact blocks, coil surge suppressors, and operation counters.

Field modifications are quick and easy to make.

Type SC-N6 and above come with an IC-controlled SUPER MAGNET coil, which operates from both AC and DC sources, to eliminate burnt coils and contact chattering by voltage fluctuation.
