FUJI Command Switches DY22 series
Pilot Lights
Pilot Lights selection table
| Order Code | Lens | Lamp |
| DY22D0L-■4□ | Dome | Incandescent |
| DY22D0L-■3□ | Dome | LED |
| DY22E3L-■4□ | Extended round | Incandescent |
| DY22E3L-■3□ | Extended round | LED |
| DY22F3L-■4□ | Flush round | Incandescent |
| DY22F3L-■4□ | Flush round | LED |
Note：Replace the ■ by A:6V (AC/DC), B: 12V AC/DC, E: 24V (AC/DC), H: 100-110V (AC/DC) Q: 230V (AC/DC)
Note：replace the □ by required colour code (G, R, W, Y, A, S)
| Lens Color | Code |
| Green | G |
| Red | R |
| White | W |
| Yellow | Y |
| Orange | A |
| Blue | S |
Product: Fuji AY DY Pushbutton

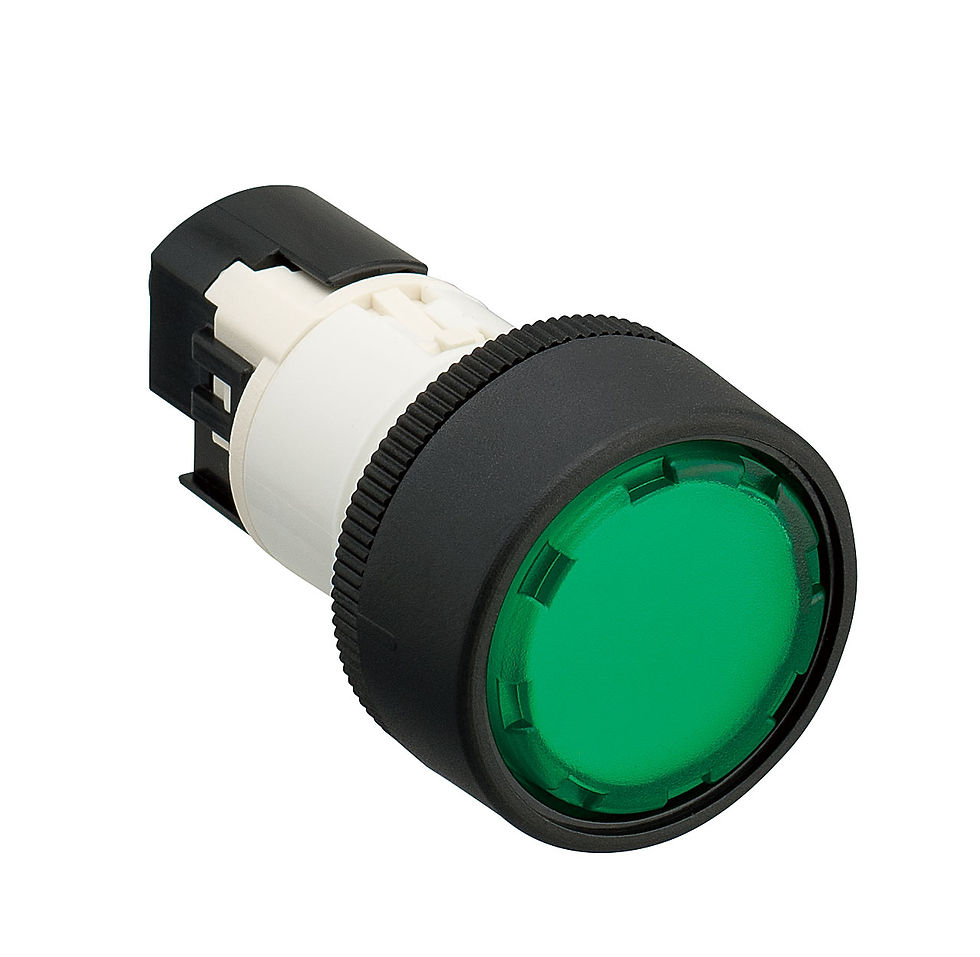

FUJI Pilot Lights (Command Switches) DY series
HK$15.00Price
FUJI Command Switches DY22 Series Pilot Light
Easy attachment and detachment
with a release arm
- The separate structure with a unique wedge mechanism enables one-step attachment and detachment of the operating section and contact section, without the use of any tool.
Panel cutout dimensions of 22.3 mm and 25.5 mm diameter
- By providing a projection on the tightening nut, one switch can be mounted on two different panel cutout dimensions.
- Therefore, switches do not need to be purchased to match the panel cutout dimensions.
Contact block and lamp terminal can also be added or replaced in a single step
- All contact block and lamp terminal are designed with snap-on mounting, so no tools are required. Replacement of the contact block can be done with a screwdriver, without the need for any special tool. Contact block is easily replaced even when the pushbuttons are mounted closely together.
